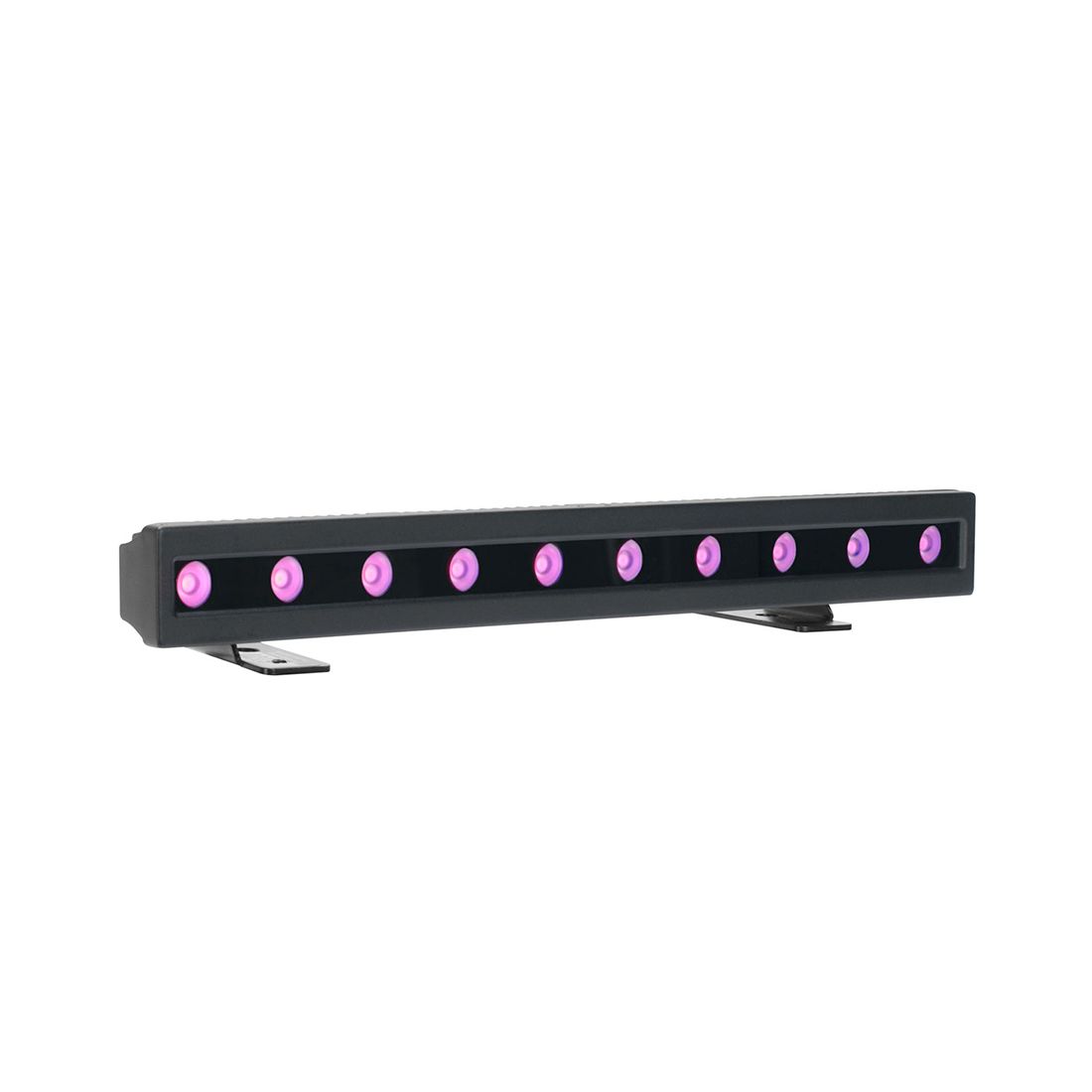

• The Magmatic Prisma Mini Bar 20 - 365nm by Magmatic is a black rectangular LED light bar featuring ten evenly spaced 365nm UV-A purple LEDs, mounted on two brackets. Designed for stage or accent lighting, this IP65 linear fixture is ideal for outdoor wall grazing applications.

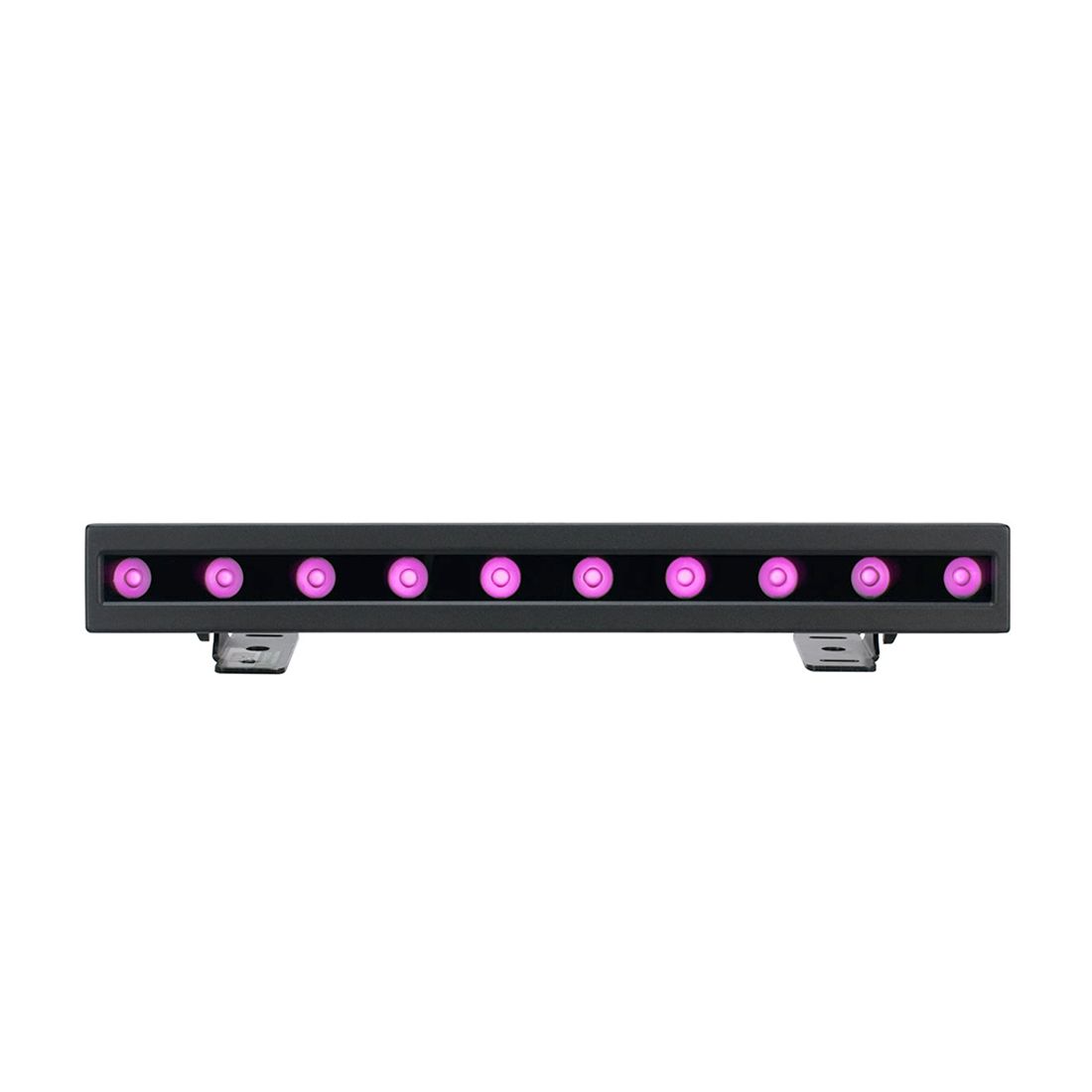

  • The Magmatic Prisma Mini Bar 20 - 365nm by Magmatic is a black, rectangular LED bar light featuring ten evenly spaced, small purple 365nm LED bulbs, shown from the front against a white background—ideal for IP65 linear UV-A wash effects and outdoor wall grazing applications.

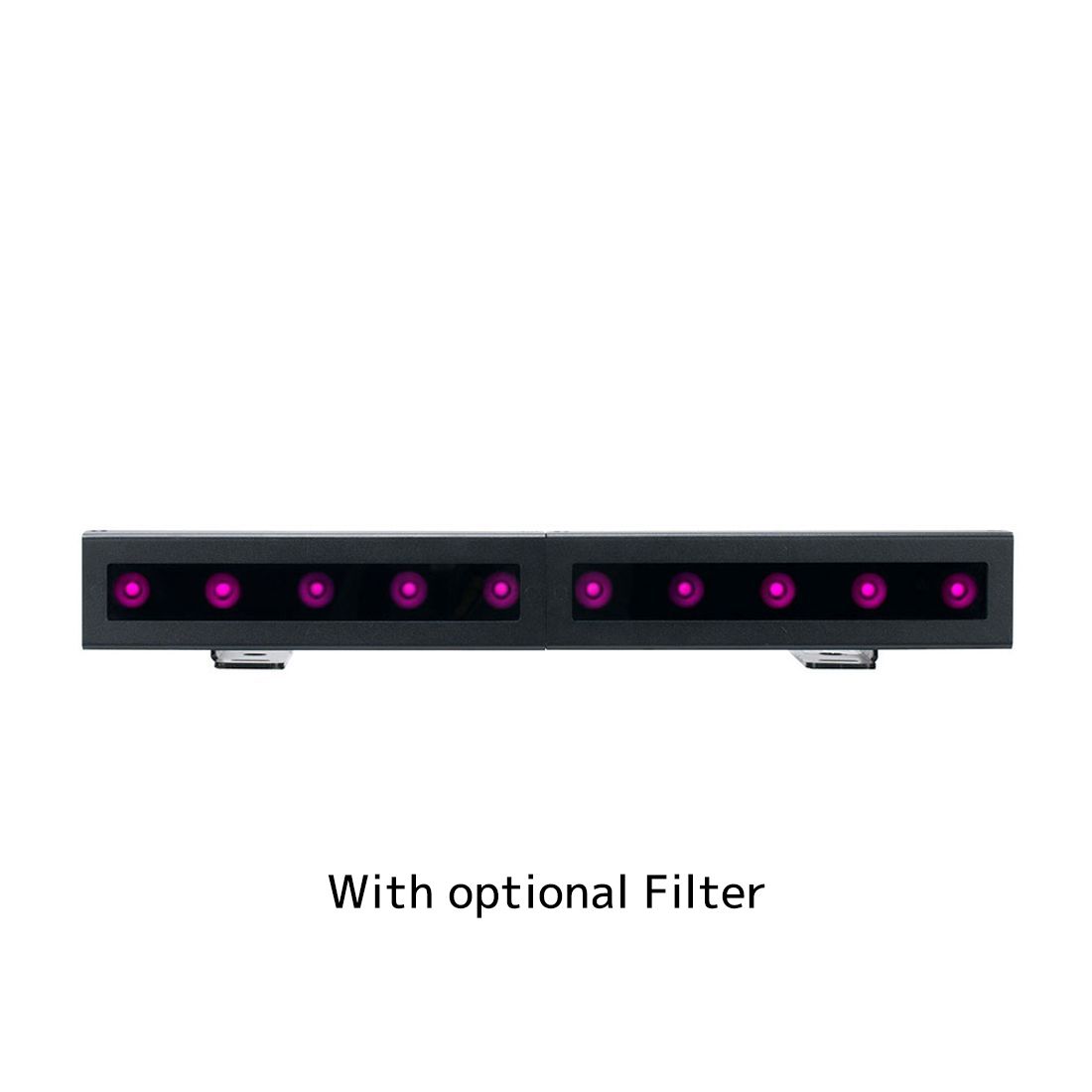

  • A rectangular black device, the Magmatic Prisma Mini Bar 20 - 365nm by Magmatic, is shown with two panels each housing four purple-glowing circular sensors against a white background. Text reads: With optional filter. Featuring IP65-rated linear UV-A wash and powerful 365nm LED technology, the Prisma Mini Bar 20 is ideal for outdoor wall grazing applications.

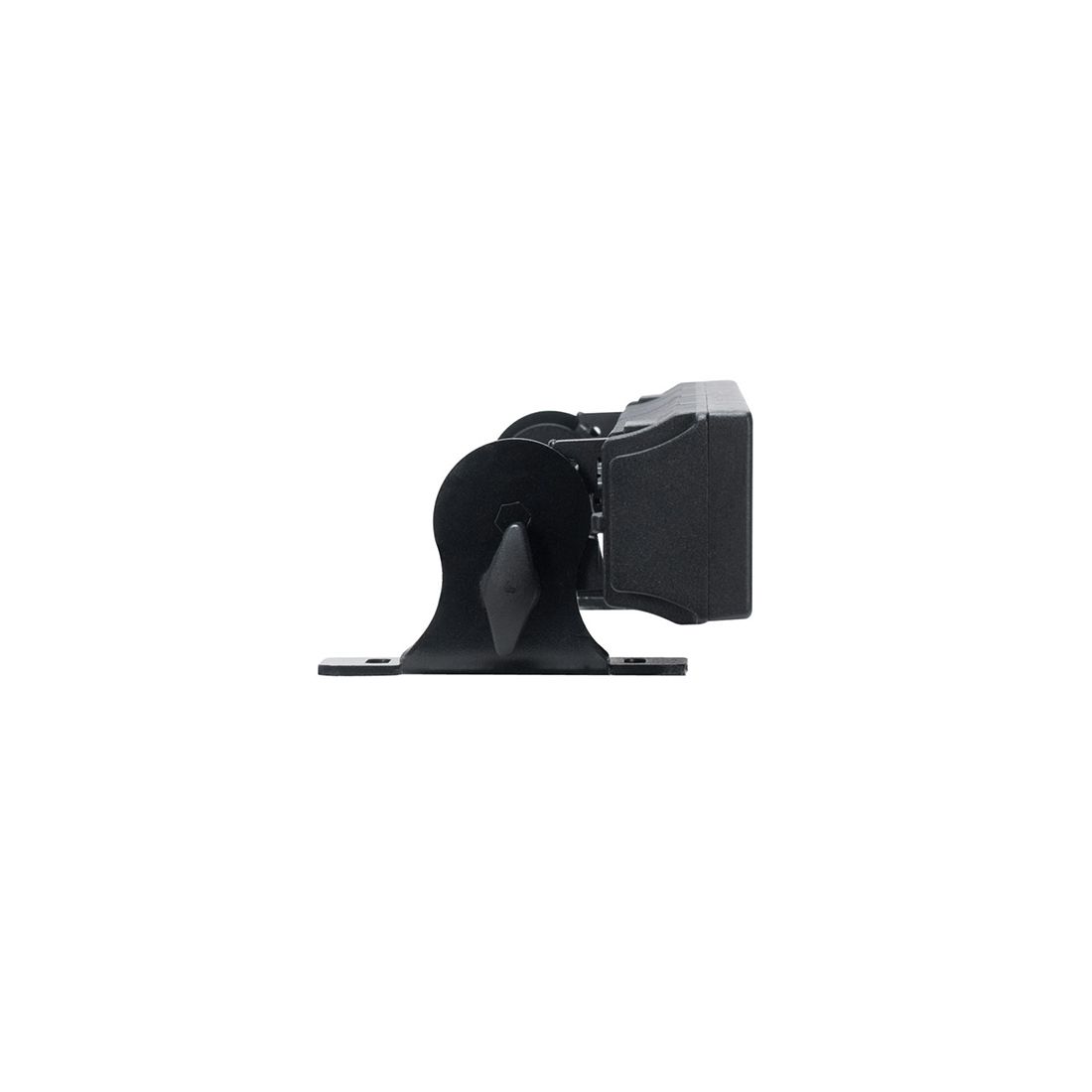

  • Side view of a Magmatic Prisma Mini Bar 20 - 365nm by Magmatic, a black, rectangular electronic device featuring a 365nm LED, mounted on a flat metal bracket against a plain white background—ideal for IP65 linear UV-A wash and outdoor wall grazing applications.
1 4

Magmatic

Magmatic Prisma Mini Bar 20 - 365nm

Magmatic Prisma Mini Bar 20 - 365nm

£466.45
£466.45
SALE SOLD OUT - Contact Us
VAT included

Next day delivery, order before 12.30

All orders of in-stock items are shipped for next working day delivery as standard if ordered before 12.30pm UK time.

Special order items or additional stock states the further delivery time, please contact us to check precise lead time if needed.

Free UK delivery over £150(Inc VAT)

Free next working day delivery for all UK orders over £150 (Inc VAT), or £11.99 (Inc VAT) flat fee for all orders below.

30 day returns

If you have any questions before purcashing, feel free to contact us and we'll be happy to help. You have 30 days to return unused items, see our returns policy for full details.

International delivery available

We are able to ship internationally on request, please contact us for a delivery quote. All items are shipped Delivered at Place DAP and customers are responsible for all import duties and taxes.

A 480mm IP65 linear UV-A wash with 10x 2W 365nm LEDs at 20°, powered and controlled from the Prisma Driver 8 or Driver 8 IP. Ideal for grazing walls, edging steps and picking out linear scenic detail outdoors.

Features

  • 10x 2W 365nm UV-A LEDs
  • 20° beam angle
  • IP65 rugged aluminium housing
  • Two adjustable mounting brackets
  • Remote 36.7VDC power via Prisma Driver 8 / 8 IP
  • Optional black glass filter for a total blackout effect

Specifications

Source 10x 2W 365nm UV-A LED
Beam angle 20°
Ingress protection IP65
Power DC 36.7V via Prisma Driver 8 / 8 IP — 24.3W max
Size (L x W x H) 100 x 480 x 106.5 mm
Max cable run 12m (40 ft) driver to fixture
Operating temperature -10°C to 45°C

Specifications subject to change without notice.
