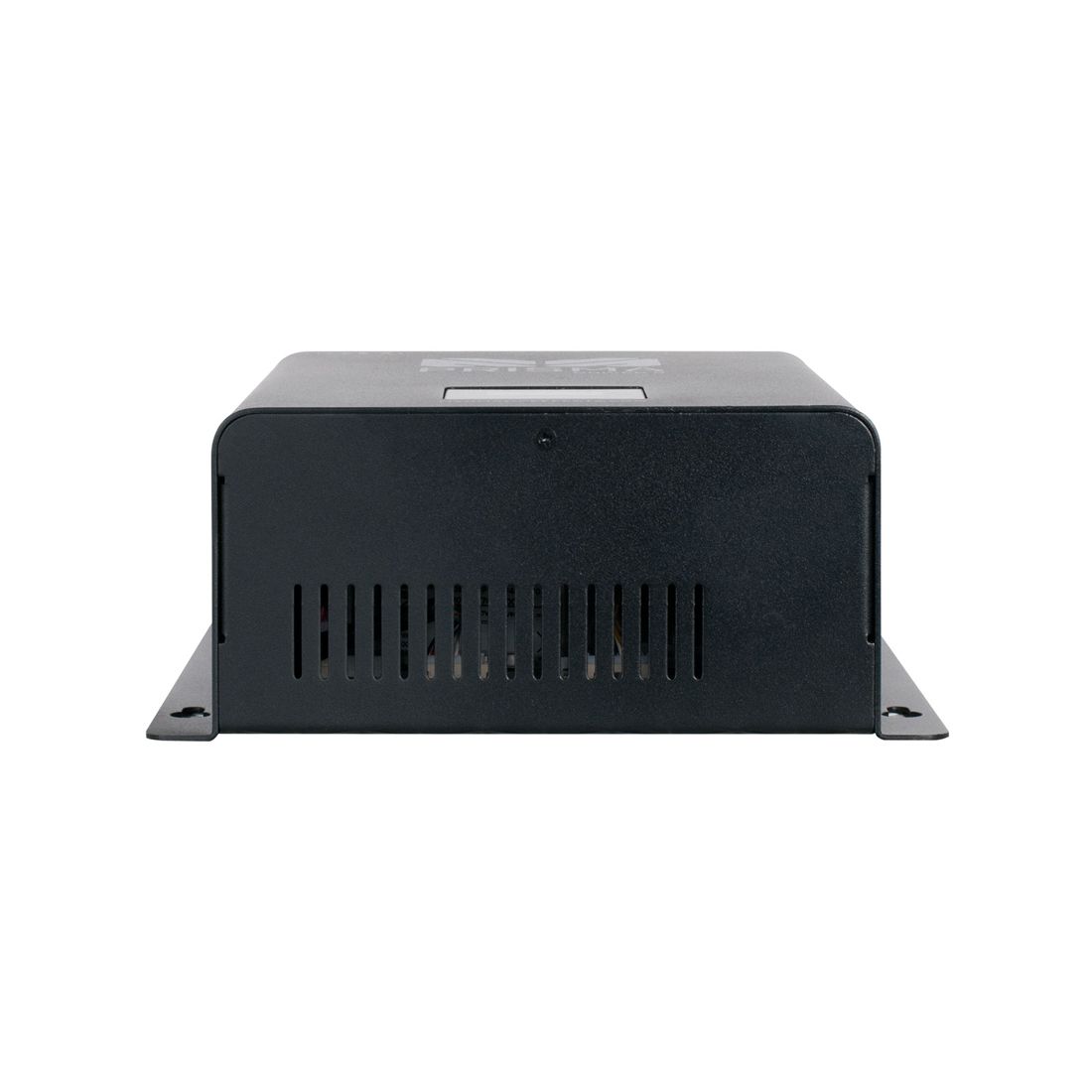

  • Front view of a black metal Magmatic Prisma Driver 8 electronic device enclosure with vent slits and mounting flanges on each side, designed to house a Prisma Mini UV driver or 48VDC driver for DMX-512 control, displayed against a white background.

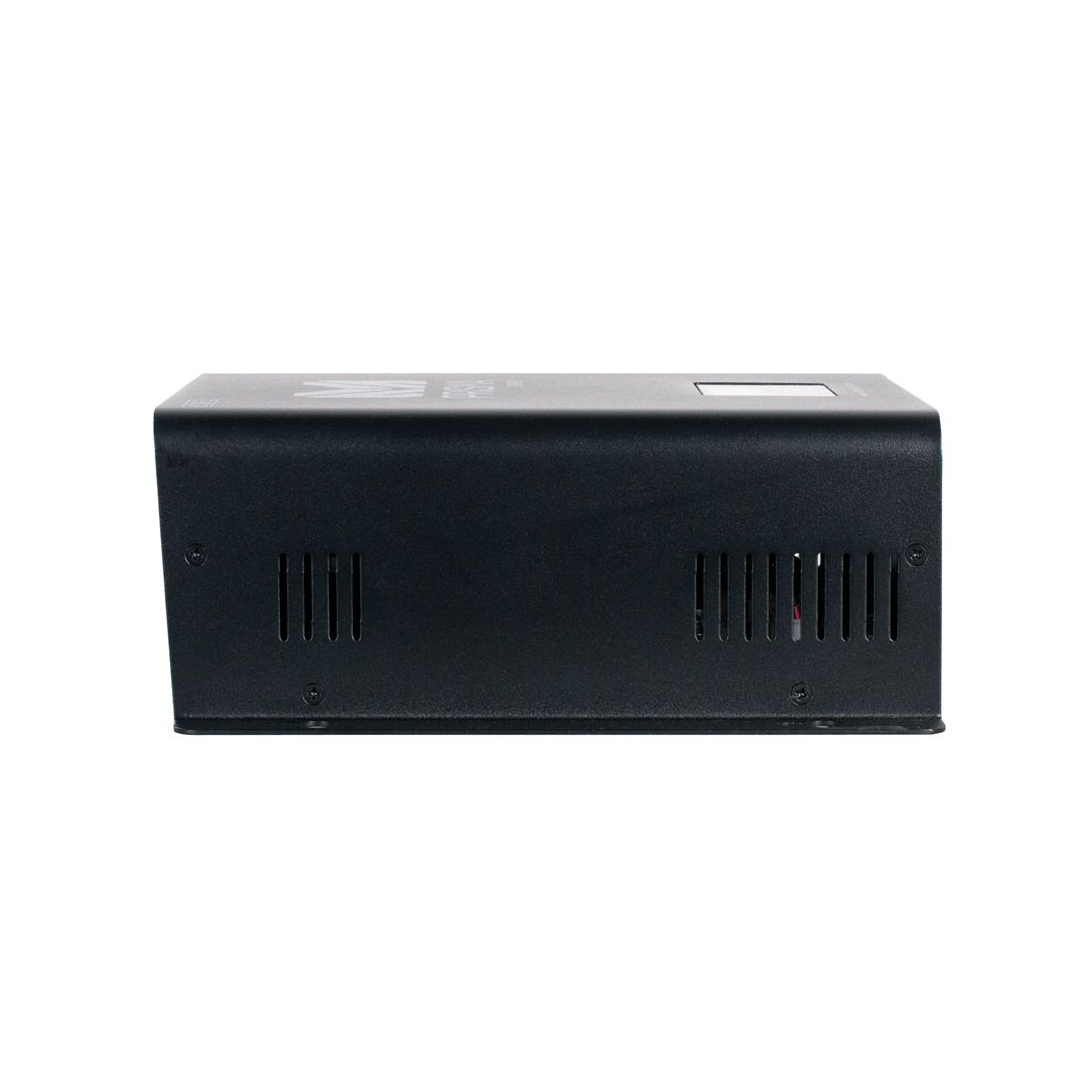

  • A black rectangular Magmatic Prisma Driver 8 electronic device with air vents on the side, shown from a side view against a white background, featuring DMX-512 control for versatile operation.

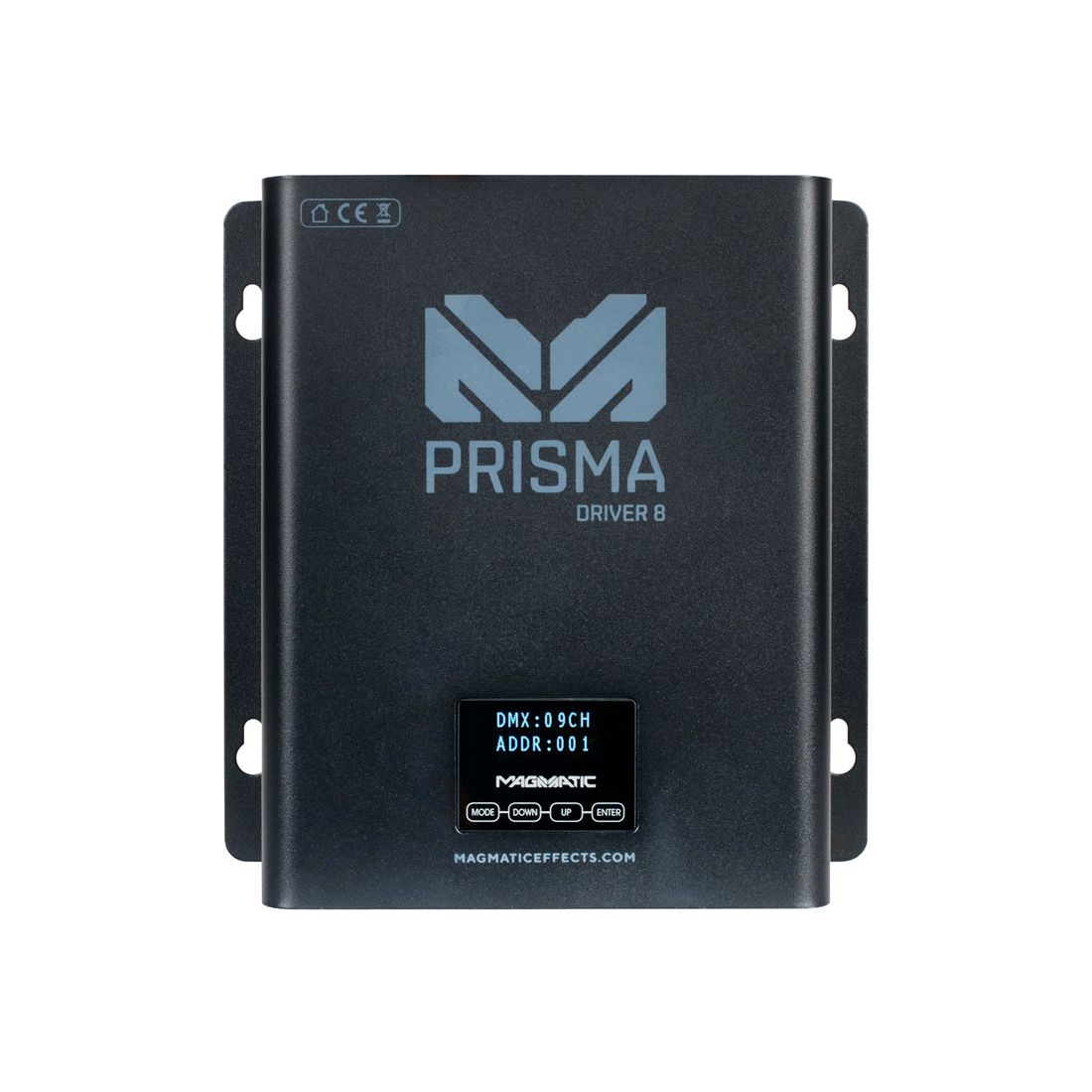

  • Rectangular black Magmatic Prisma Driver 8 device with mounting flanges, logo, and digital display screen labeled DMX: 09CH ADDR: 001, featuring DMX-512 control and Magmatic branding.
1 4

Magmatic

Magmatic Prisma Driver 8

Magmatic Prisma Driver 8

£526.51
£526.51
SALE SOLD OUT - Contact Us
VAT included

Next day delivery, order before 12.30

All orders of in-stock items are shipped for next working day delivery as standard if ordered before 12.30pm UK time.

Special order items or additional stock states the further delivery time, please contact us to check precise lead time if needed.

Free UK delivery over £150(Inc VAT)

Free next working day delivery for all UK orders over £150 (Inc VAT), or £11.99 (Inc VAT) flat fee for all orders below.

30 day returns

If you have any questions before purcashing, feel free to contact us and we'll be happy to help. You have 30 days to return unused items, see our returns policy for full details.

International delivery available

We are able to ship internationally on request, please contact us for a delivery quote. All items are shipped Delivered at Place DAP and customers are responsible for all import duties and taxes.

A 48VDC driver providing individual DMX-512 control — including variable delayed dimming modes — for up to eight Prisma Mini UV fixtures (Mini Par 20, Mini Par 45 and Mini Bar 20). Rugged aluminium housing with keyhole mounting and an onboard 4-button touch panel.

Features

  • Powers up to 8 Prisma Mini UV fixtures
  • 8x 2-pin bare wire block terminals
  • Locking 5-pin XLR DMX in/out
  • Onboard 4-button touch control panel
  • DMX-512 and RDM, plus manual control

Specifications

Outputs 8x 2-pin bare wire block terminals
Control DMX-512, RDM, manual — multiple channel modes
Electrical AC 100-240V 50/60Hz — 48VDC 8.3A, 167W max
Size (L x W x H) 225 x 212 x 88 mm
Weight 2.6 kg
Operating temperature -10°C to 45°C

Specifications subject to change without notice.
