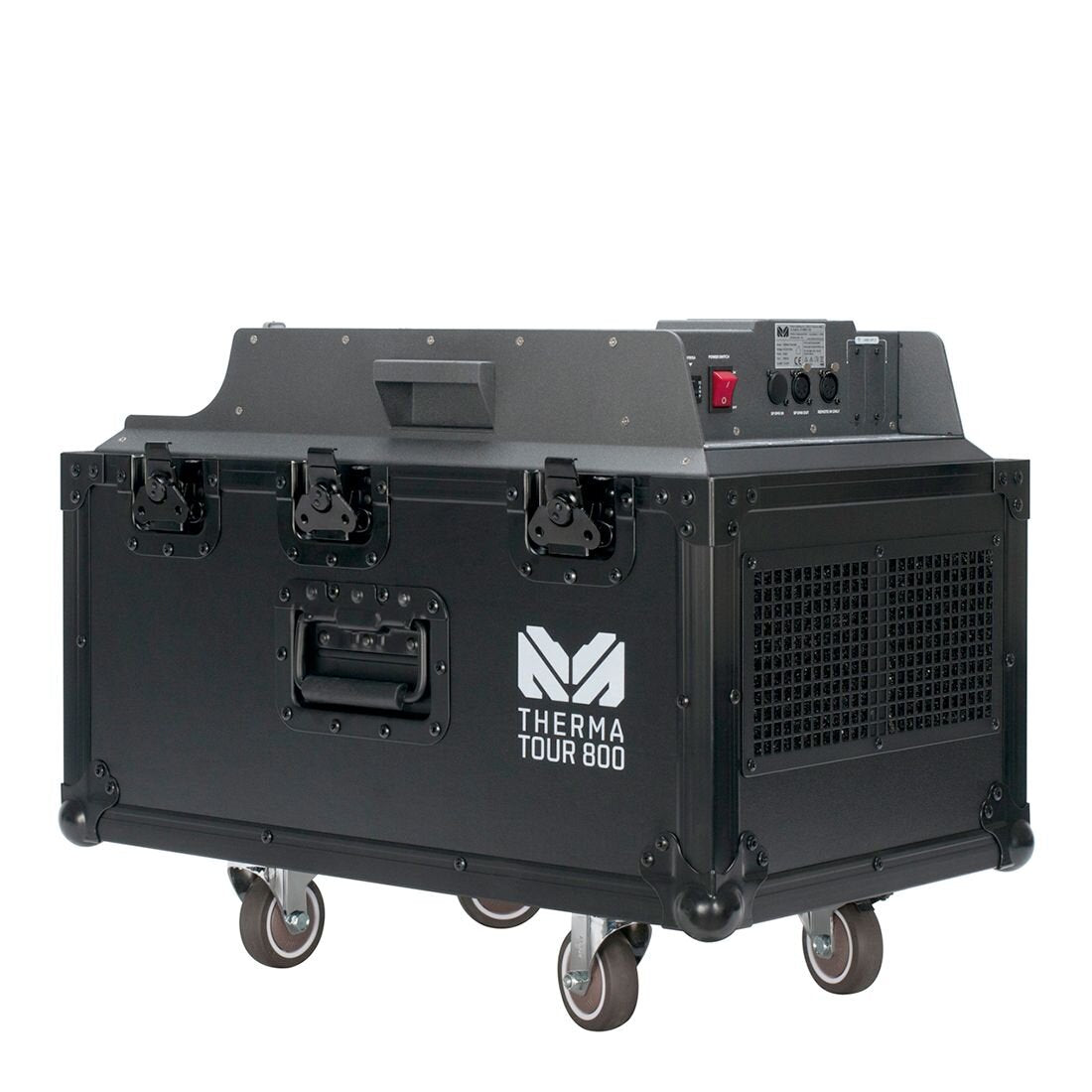

Elation - Magmatic - THERMA TOUR 800 - Hazer

The Therma Tour 800 is a powerful oil-based haze effect generator that produces an exceptionally fine, long-lasting atmospheric haze that excels at revealing light beams and mid-air effects. The 800W Therma Tour 800 creates a safe, clean and odorless haze effect that leaves no residue. The perfect small-particle haze for highlighting light beams, the unit holds two liters of fluid for over 35-hours of run time with no warm up time required. Hang time is incredibly long at over 3 hours in an enclosed space! Compact yet ruggedly built to withstand the day in and day out rigors of on-the-road use, multiple control options include a wireless RF remote, Magmatic Magfly or Elation E-Fly wireless DMX, wired remote, Magmatic App, and manual, on-board, touch screen control.

FEATURES

800 Watt low power consumption
Over 35 hours of run time
Haze lasting up to 3 hours after machine is off
Rugged mobile road case design
Soundproof insulation for indoor use

DYNAMIC EFFECTS

Output: 5600 cu.ft / Min
External Visual Fluid Level Detection

COMPATIBLE FLUID

Atmosity Oil Based Haze Fluid (ARH), available as a 2, 4 or 20 litre container
or
Atmosity Premium Haze Fluid (AAH), available as a 2, 4 or 20 litre container

NOTE: AAH Water base fluid can be used but cannot switch between oil/water without cleaning out entire fluid system prior to switching

CONSTRUCTION / PHYSICAL / PERFORMANCE

External Visual Fluid Level Detection
Fluid Tank Capacity: 2.5L
Fluid Consumption: 1.5ml / Min.

CONTROL

2 Card Inputs
RDM (Remote DMX)
Control Protocol: DMX
2 DMX Modes (1 / 3 Channels)
On-Board Timing Control
4-Pin Wired Remote Input for optional remote
Touch Screen Display
Manual Control via on-board display

CONNECTIONS

Data Connectors: 5-Pin XLR/Out, 4-Pin XLR Out
Locking Power Connector

SIZE / WEIGHT

Length: 621.13mm (24.45 in.)
Width: 389.63mm (15.34 in.)
Height: 504.76mm (19.87 in.) (with casters)
Weight: 42kg (93 lbs.)

ELECTRICAL

Power Consumption: 820W
Input Voltage: AC 230V 50Hz
Breaker Size: 10A
