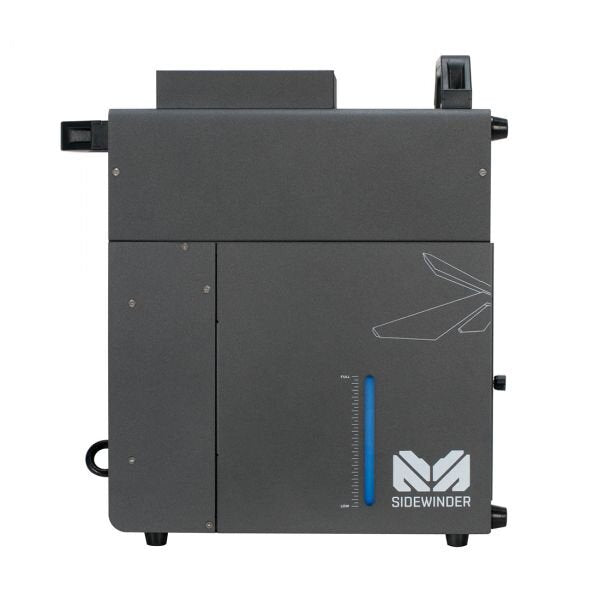

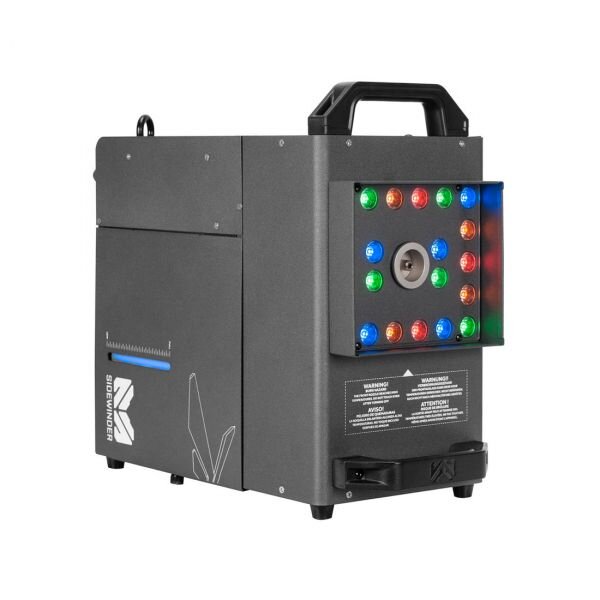

Elation - Magmatic - SIDEWINDER - Smoke - 1450W

The Magmatic Sidewinder is a high velocity CO2 simulator fog machine. Including 22 x 2 watt RGBA LEDs. The Sidewinder can burst fog in multiple positions, rotating 180° degrees. Easy to use onboard LCD touch screen control panel, intuitive DMX-512 and RDM control, a durable aluminium housing, and optional wired and wireless remote control options.

FEATURES

High-velocity CO2 simulator fog machine
50,000 cu.ft per minute
Four 10-second 20-ft bursts
180° multi position fog burst
22x 3watt RGBA LED's
Durable, tour-ready, aluminum housing

PERFORMANCE

Rated Power: 1450W
Max Output: 50,000 CFM* (cu ft/min.)
Max Continuous Output Duration: 8 Seconds
Max Throw Distance: 20 Feet
Initial Ready Time: 9 Minutes
Cycling Ready Time: 1 Minute

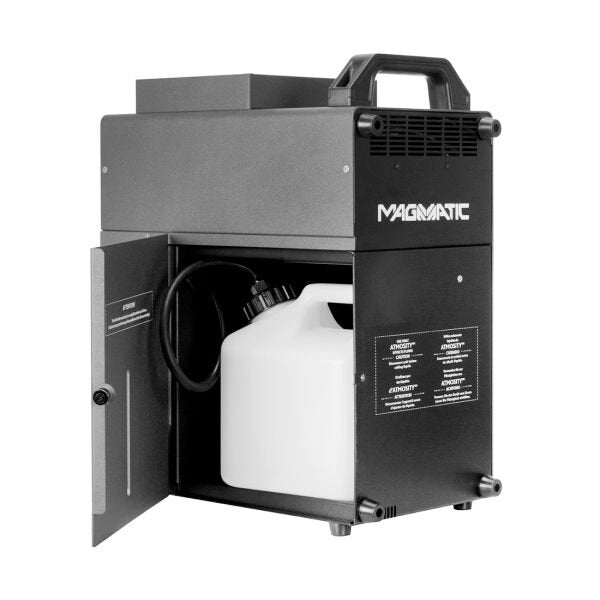

Fluid Capacity: 2.5L
Fluid Consumption: 180ml/min.

COMPATIBLE FLUID

Atmosity Flash Fog Fluid (AFF, available as a 2, 4 and 20-litre)

CONSTRUCTION

Thermally Protected Heat Exchanger
Advanced HPA (high pressure air) Pump Technology
Energy Saving Mode with Auto-Clean Process
Sealed Fluid Reservoir
External Visual Fluid Level Detection
Compact Light Weight Mobile Design

CONTROL

3 DMX Channel Modes (1 / 3 / 7)
Onboard LCD Touch Control Panel
DMX-512 and RDM Protocol Support
Optional E-FLY Wireless DMX Transceiver
Optional RF Wireless and Wired Remotes

CONNECTIONS

5pin locking XLR In/Out Connectors
IP65 Locking Power Input Connector
With Wired Digital Communication Network

SIZE / WEIGHT

Length: 16.26 in. (413mm)
Width: 7.60 in. (193mm)
Height: 14.80 in. (376mm)
Weight: 29.5 lbs. (13.4kg)

ELECTRICAL

AC 230-240V - 50/60Hz
Breaker Size: 10A
Max Power Consumption: 1560W
