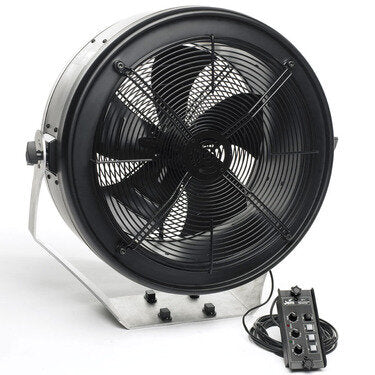

Martin / JEM AF 2 Fan DMX and Remote 230v

The JEM AF-2 DMX fan is a high-output fully DMX controllable fan. The fan casing is constructed from lightweight aluminum to make it easy for one person to carry; weight has been limited to only 17.5 kg with the included flying bracket installed. It is supplied with an analog timer remote control for fast and easy control. The included aluminum flying bracket is compatible with the Omega clamp system and an optional "Touring Frame" is available for added protection against the rigors of the road with an included remote control storage system perfect for rental production purposes. The 24” fan motor is sealed to withstand high condensation levels. The JEM AF-2 DMX fan has been designed as a complimentary item for a complete atmospheric system solution with special effects, theme parks, photography film/studio work in addition to traditional stage and theatre applications in mind.

• Integrated DMX and included remote control

• Low-noise, 73 dBA at maximum output

• Variable speed, range and control

FEATURES

• 24" Sealed motor, resists moisture

• Variable speed, range and control

• Instant-on, low minimum speed

• Multi-functional timer remote control included

• Integrated DMX

• Floor standing or truss mounting

• Optional "Touring Frame"

• Low Noise level, only 73 dBA at maximum output

• Broad regulatory compliance

PHYSICAL

Width: 600 mm (23.7 in.)

Height: 600 mm (23.7 in.)

Depth: 310 mm (12.2 in.)

Weight: 15.7 kg (34.7 lb.)

PERFORMANCE

Maximum airflow: 5700 m3 (201,295 ft3) hour

CFM: 3355 CFM

Fan speed: 0-1400 rpm

Maximum noise level: 73 dBA
